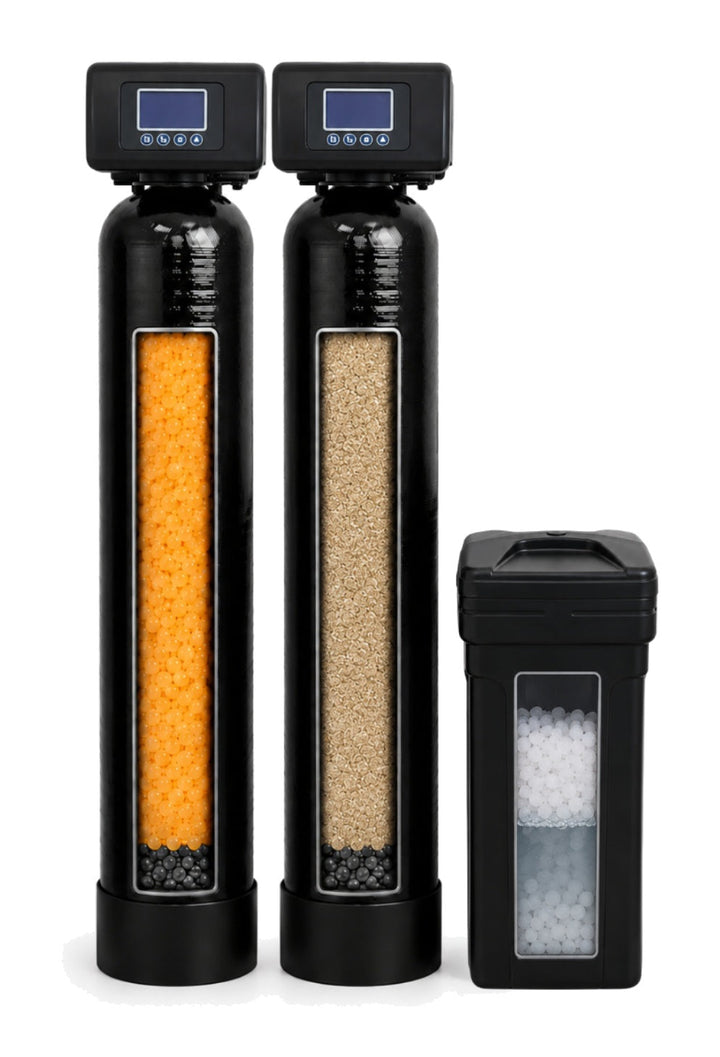

Dual Tank Well Water
Iron Breaker AIO & Softener
Specification Sheet
Well water treatment in two stages. Air-injection oxidation breaks iron and sulfur out of solution so a catalytic carbon and Katalox Light bed can filter them, then a CG10 resin tank softens what is left. No chemicals to buy or handle.
Well waterNSF/ANSI 44NSF/ANSI 61WQA Gold Seal resinAssembled in Texas
Key specifications
| Application | Well water |
| Configuration | Dual tank, air-injection oxidation |
| Tank 1 (D×H) | 10" × 60" |
| Tank 1 media | Catalytic carbon + Katalox Light, 1 cu ft |
| Tank 2 (D×H) | 10" × 60" |
| Tank 2 media | CG10 resin, 48,000 grain, 1.5 cu ft |
| Brine tank | 15"L × 17"W × 36"H |
| Salt storage | 150 lbs |
| Targets | Iron, sulfur, hardness |
Operating requirements
| Operating pressure | 30 – 125 PSI |
| Water temperature | 40° – 110°F (4° – 43°C) |
| Electrical | 110V — both valves |
| Salt per regeneration | 9 lbs |
| Water per regeneration | 45 – 60 gallons |
| Oxidation | Air injection, drawn and vented each cycle — no chemical feed |
| Regeneration | Demand-initiated metering on both tanks |
Components & sourcing
| Control valve | Ceramic disc ProValve — 72-hour memory backup, 1"–1.25" bypass |
| Iron / sulfur media | Katalox Light with catalytic coconut-shell carbon |
| Softening resin | ResinTech CG10 strong-acid cation, 10% crosslinked — WQA Gold Seal |
| Mineral tanks | Fiberglass pressure tanks — lifetime warranty |
| Assembly | Fort Worth, Texas |
| Certifications | NSF/ANSI 44, NSF/ANSI 61 |
| Valve warranty | 5 years on the control valves; lifetime on the ceramic discs |
| Installation | Professional installation included — Honest Water Co of El Paso |
What this system handles
- Ferrous and ferric iron — the cause of rust staining
- Hydrogen sulfide — rotten-egg odor
- Manganese and black staining
- Hardness — scale on fixtures and glass
- Sediment carried up from the well
- Taste and odor compounds
- No chemicals to store, mix, or refill
- Both tanks backflush on their own schedule
Component brands and certifications are those of their respective manufacturers. Do not use on water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
