Dual Tank
Whole-Home Softener & Carbon Filtration
Specification Sheet

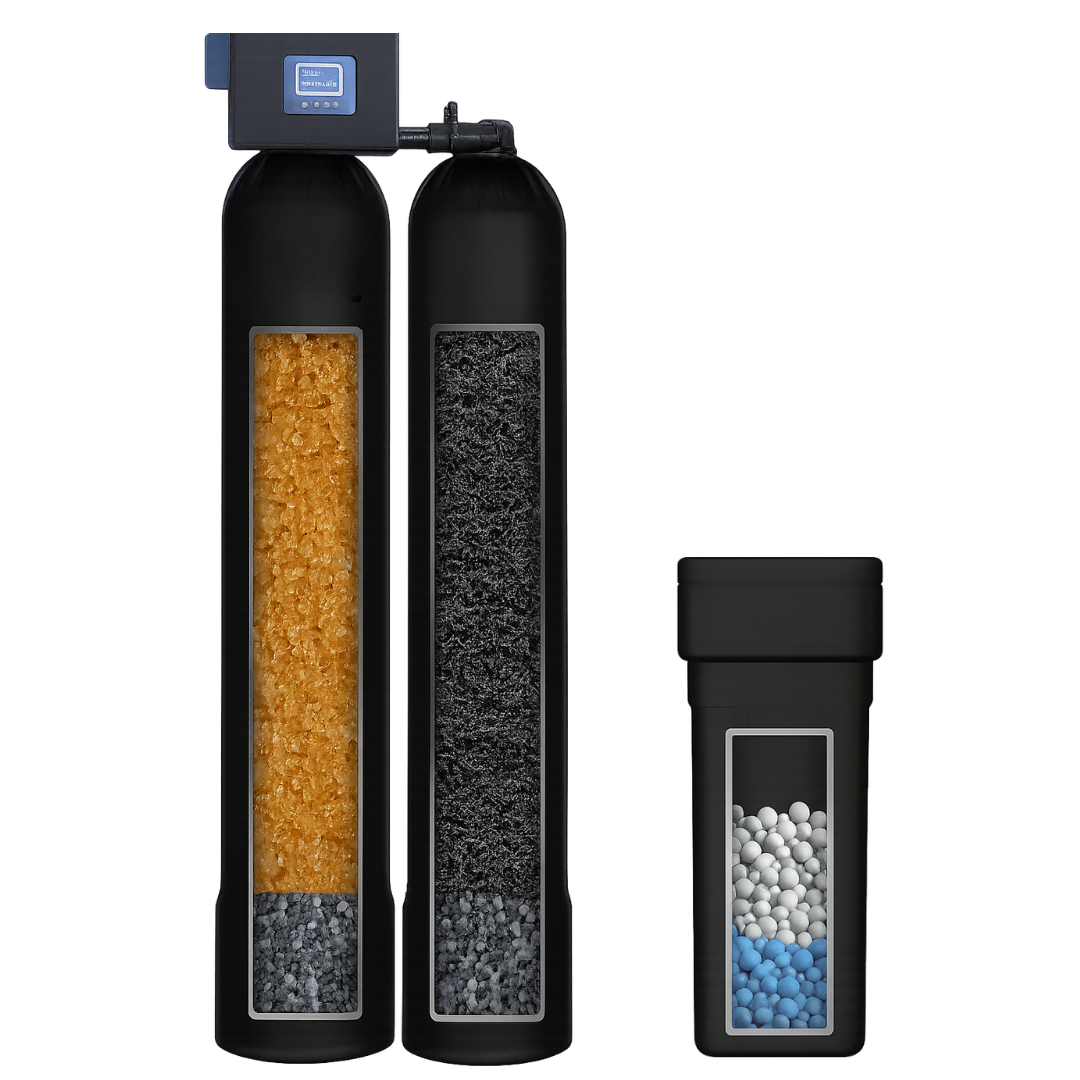

Two tanks instead of one — a dedicated resin tank and a dedicated carbon tank, treating in stages. Built for continuous demand: large households, pools, and homes that never really stop using water.
NSF/ANSI 44NSF/ANSI 42NSF/ANSI 61WQA Gold Seal resinMade in USA
Key specifications
| Softening capacity | 96,000 grains |
| Valve flow rate | 28 GPM |
| Service flow rate | 27 GPM |
| Configuration | Two tanks — one resin, one carbon |
| Brine / salt tank | 15" × 35" square |
| Distributor tube | 1.25" high-flow |
| Bypass valve | 1" full-flow, included |
| Port connections | 1" NPT elbows |
| Backflush | Both tanks, to extend system life |
| Best suited to | 10+ residents, pools, continuous demand |
Operating requirements
| Operating pressure | 30 – 125 PSI |
| Water temperature | 40° – 110°F (4° – 43°C) |
| Electrical | 120V / 60Hz — 12V 650mA transformer |
| Inlet turbidity | Under 5 FTU |
| Service flow | 27 GPM at 15 PSI pressure drop |
| Backwash flow | 3.0 gal/min |
| Regeneration | Upflow counter-current, demand-initiated metering |
Components & sourcing
| Control valve | Hankscraft ceramic disc valve — assembled in Wisconsin, 72-hour memory backup |
| Mineral tank | Enpress LLC fiberglass pressure tank — made in Ohio |
| Softening resin | ResinTech CG10 strong-acid cation, 10% crosslinked — New Jersey, WQA Gold Seal |
| Carbon media | Jacobi granular activated coconut-shell carbon |
| Support bedding | Underbedding gravel, sourced in Texas |
| Assembly | Fort Worth, Texas |
| Certifications | NSF/ANSI 44, NSF/ANSI 42, NSF/ANSI 61 |
| Tank warranty | Lifetime on all pressure tanks |
| Valve warranty | 5 years on the control valve; lifetime on the ceramic discs |
| Installation | Professional installation included — Honest Water Co of El Paso |
What the carbon reduces
- Chlorine and chloramines
- THMs and disinfection byproducts
- PFAS / PFOA / PFOS
- VOCs, benzene, toluene, xylene
- Pesticides and herbicides
- Hydrogen sulfide odor
- Heavy metals
- Taste and odor compounds
Component brands and certifications are those of their respective manufacturers. Do not use on water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Honest Water Co of El Paso · 1201 N. Mesa St., Ste. C, El Paso, TX 79902 · (915) 529-1005 · honestwaterelpaso.comSpecifications subject to change without notice.
