Iron & Sulfur Removal
Peroxide Injection & Softener
Specification Sheet

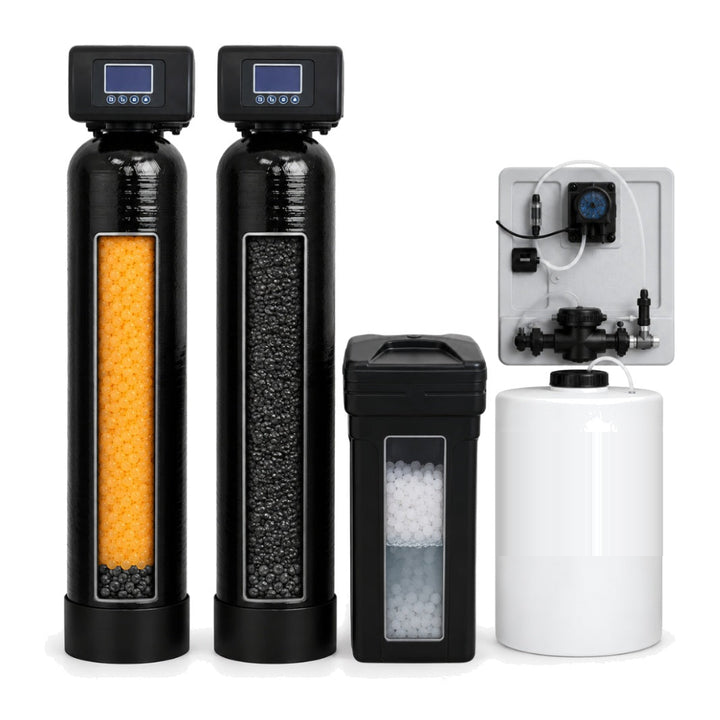

For the wells a standard build cannot handle. A hydrogen peroxide injection pump oxidizes heavy iron, sulfur, and bacteria ahead of dual-stage filtration through catalytic carbon and CG10 softening resin.
Problem well waterNSF/ANSI 44NSF/ANSI 61WQA Gold Seal resinAssembled in Texas
Key specifications
| Application | Problem well water |
| Configuration | Dual tank + peroxide injection pump |
| Oxidation | Hydrogen peroxide injection |
| Tank 1 (D×H) | 10" × 60" |
| Tank 1 media | CG10 resin, 48,000 grain, 1.5 cu ft |
| Tank 2 (D×H) | 10" × 60" |
| Tank 2 media | Catalytic carbon, 1.5 cu ft |
| Brine tank | 15"L × 17"W × 36"H |
| Targets | Iron, sulfur, bacteria, hardness |
Operating requirements
| Operating pressure | 30 – 125 PSI |
| Water temperature | 40° – 110°F (4° – 43°C) |
| Electrical | 110V — valves and injection pump |
| Salt per regeneration | 9 lbs |
| Water per regeneration | 45 – 60 gallons |
| Chemical feed | Hydrogen peroxide, metered by the injection panel |
| Contact | Peroxide holding tank ahead of filtration |
Components & sourcing
| Control valve | Ceramic disc ProValve — 72-hour memory backup, 1"–1.25" bypass |
| Injection panel | Peroxide metering pump with holding tank |
| Filtration media | Catalytic granular activated coconut-shell carbon |
| Softening resin | ResinTech CG10 strong-acid cation, 10% crosslinked — WQA Gold Seal |
| Mineral tanks | Fiberglass pressure tanks — lifetime warranty |
| Assembly | Fort Worth, Texas |
| Certifications | NSF/ANSI 44, NSF/ANSI 61 |
| Installation | Professional installation included — Honest Water Co of El Paso |
What this system handles
- Heavy iron beyond what air injection clears
- Hydrogen sulfide at high concentrations
- Iron bacteria and slime
- Manganese and black staining
- Hardness — scale on fixtures and glass
- Rust staining in sinks, tubs, and laundry
- Taste and odor compounds
- Peroxide leaves no salt or chloride behind
Component brands and certifications are those of their respective manufacturers. Do not use on water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
