Pre-Sediment Filter
Complete Set with Bracket
Specification Sheet

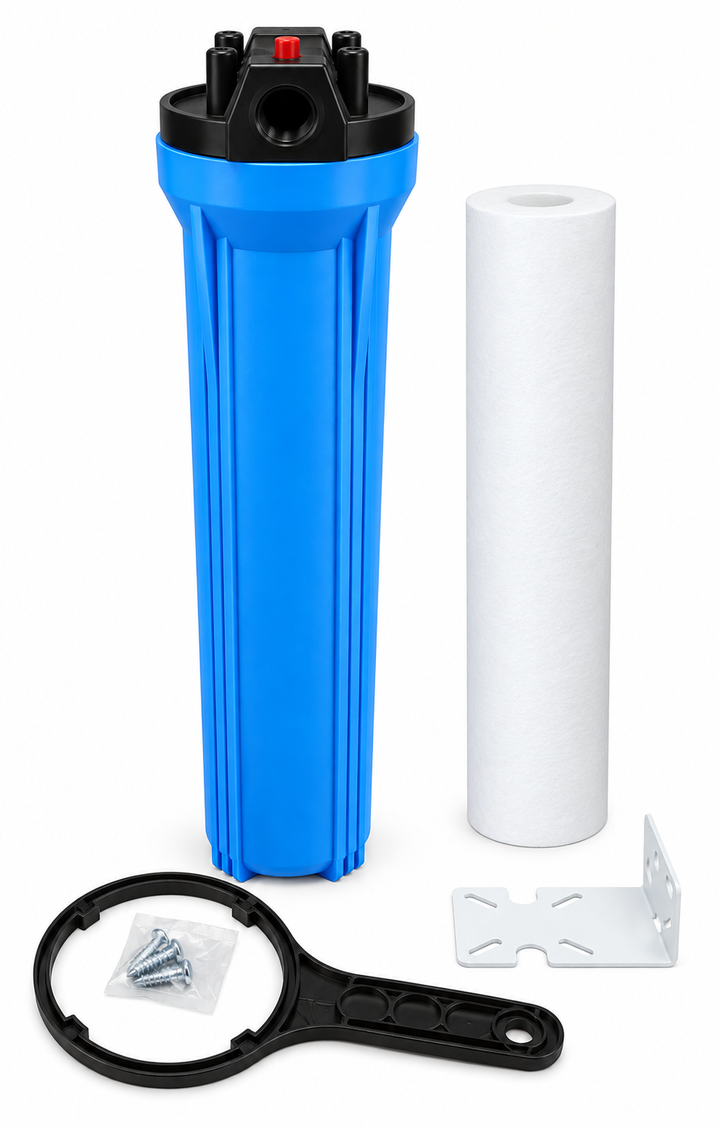

The first line of defense. A 20" × 4.5" 5-micron cartridge catches sand, rust, dirt, and grit before they reach the main system, protecting the media bed and extending its life while holding water pressure.
City or well water5 micronBracket includedQuick-change housing
Key specifications
| Type | Pre-system sediment filter, complete build |
| Cartridge dimensions | 20" × 4.5" |
| Micron rating | 5 micron |
| Flow rate | 5 GPM |
| Filter life | 10,000 gallons |
| Initial pressure drop | 1 PSI |
| Includes | Housing, mounting bracket, cartridge |
| Position | Ahead of the main system |
Operating requirements
| Operating pressure | 30 – 125 PSI |
| Water temperature | 40° – 110°F (4° – 43°C) |
| Electrical | None required |
| Cartridge change | Roughly every 10,000 gallons or when pressure drops |
| Change time | A few minutes with the supplied housing wrench |
| Standard on | Well water installations |
Components & sourcing
| Housing | Quick-change filter housing with pressure-relief button |
| Bracket | Wall mounting bracket included |
| Cartridge | 5-micron pleated sediment cartridge |
| Assembly | Fort Worth, Texas |
| Installation | Professional installation included — Honest Water Co of El Paso |
What it catches
- Sand and silt from well and city lines
- Rust flakes from older plumbing
- Scale fragments shed by pipes
- Dirt and construction debris after main work
- Extends the life of softener and carbon media
- Keeps sediment out of the control valve
- Maintains water pressure through the filter
- Cartridge swaps you can do yourself
Component brands and certifications are those of their respective manufacturers. Do not use on water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Honest Water Co of El Paso · 1201 N. Mesa St., Ste. C, El Paso, TX 79902 · (915) 529-1005 · honestwaterelpaso.comSpecifications subject to change without notice.
